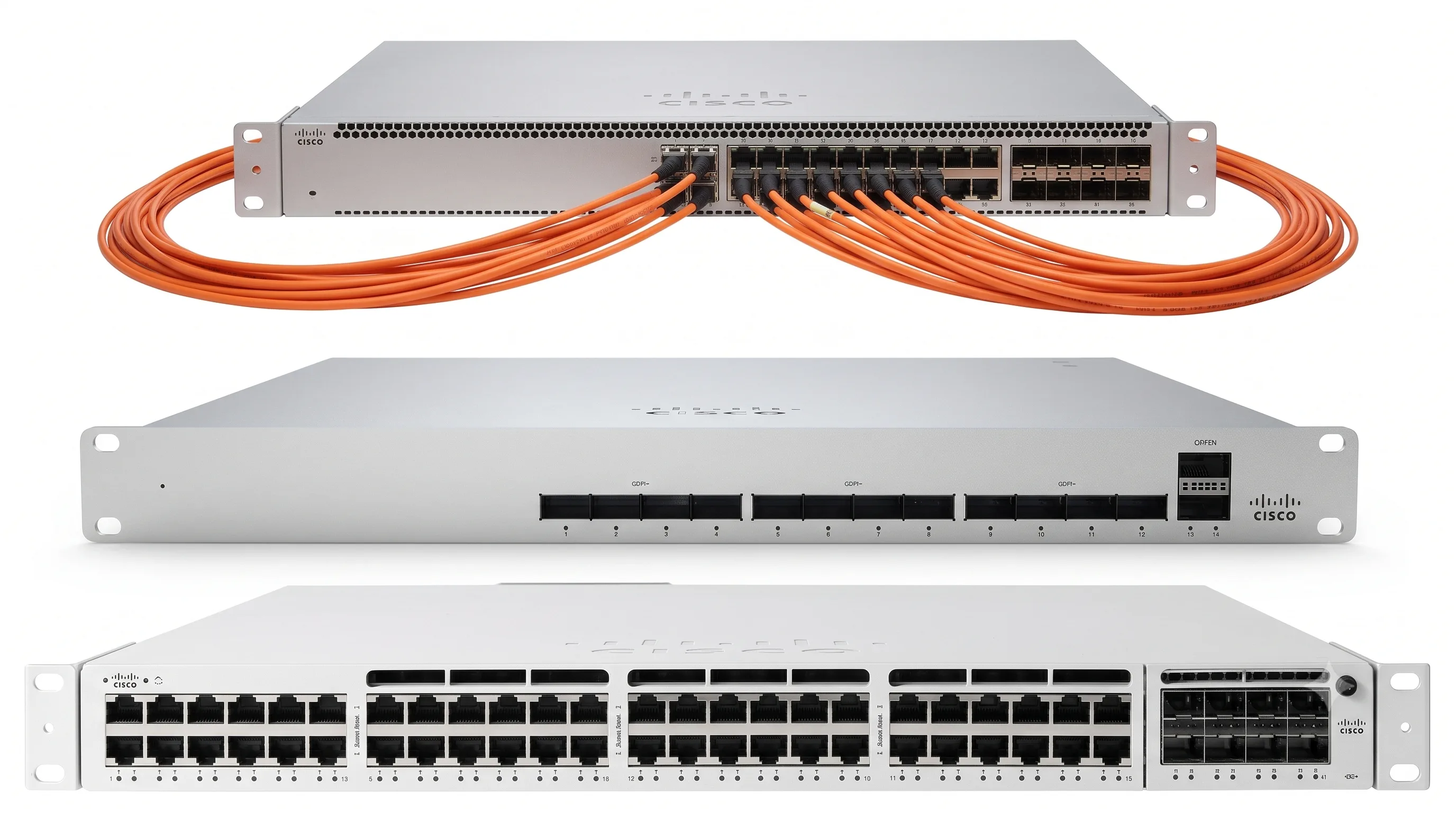

Cisco Meraki Switch

การเชื่อมต่ออุปกรณ์ต่างๆ เข้าหากันในระบบเครือข่าย จำเป็นต้องใช้ Device ชนิดหนึ่งเป็นตัวกลาง ซื้ออุปกรณ์ที่ทำหน้าที่นั้น ก็คือ Switch หรือที่เราเคยได้ยินเรียกกันว่า Switch Hub หรือ Network Switch นั่นเอง โดยในภาษาไทยก็ อาจจะเรียกว่าสะพานเครือขายหลายพอร์ตครับ ซึ่งแบรนด์ Meraki ของ Cisco ก็เป็นอีกตัวเลือกที่น่าสนใจมากๆ

สวิตซ์ฮับนั้น มีการติดตั้งได้หลายรูปแบบ ได้แก่ การวางบนโต๊ะหรือ Desktop, ติดตั้งในตู้ Rack, แบบเชสซี่ หรือ ติดตั้งบนราง DIN เพื่อให้เหมาะสมกับสภาพแวดล้อมการใช้งาน เพราะฉะนั้น ก่อนจะเลือกซื้อ Meraki Switch แนะนำให้ตรวจสอบ Requirement ทุกด้านให้ละเอียดก่อน เพื่อจะได้รองรับการใช้งานได้อย่างถูกต้อง


แสดง:
[MS450-12-HW] Cisco Meraki Cloud Managed MS450-12 - Switch - managed - 12 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP+

Device Type Switch - 12 ports - Managed - stackable
Enclosure Type Front to back airflow desktop, rack-mountable 1U
Subtype 40 Gigabit Ethernet
Ports 12 x 40 Gigabit QSFP+ + 2 x 100 Gigabit QSFP+
Performance Stacking bandwidth: 400 Gbps ¦ Switching capacity: 1.36 Tbps ¦ Forwarding rate: 654.76 Mpps
MAC Address Table Size 64K entries
Jumbo Frame Support 9578 bytes
Max Units In A Stack 8

฿681,700
[MS390-48UX2-HW] Cisco Meraki Cloud Managed MS390-48UX2 - Switch - L3 - managed - 48 x 100/1000/2.5G/5GBase-T (UPOE)

Features

Auto-negotiation, IGMP snooping, Syslog support, port mirroring, E-mail alert, Broadcast Storm Control,
PVST, DHCP snooping, ACL support, QoS, DHCP server, UDLD, DHCP relay, Port Security, hot swappable fan,
Cisco StackPower technology, crossover detection, cloud managed, 3 fans, RBAC, Root Guard, Loop Guard,
MAB, BPDU Guard, CDP

฿372,900
[MS390-48UX-HW] Cisco Meraki Cloud Managed MS390-48UX - Switch - L3 - managed - 36 x 100/1000/2.5G + 12 x 100/1000/2.5/5/10G (UPOE)

Data Link Protocol: 10 Gigabit Ethernet
Number of Ports: 48
Limited lifetime warranty
Cisco Meraki Cloud Managed MS390-48UX - Switch - L3 - Managed
36 x 100/1000/2.5G + 12 x 100/1000/2.5/5/10G (UPOE) - rack-mountable - UPOE

฿362,200
[MS390-48U-HW] Cisco Meraki MS390 48GE L3 UPOE Switch

Deployment type High-performance Campus & Branch
Interface Ports 48-port GbE UPoE/802.3bt switch
Uplinks 4/8 x 10GbE SFP+ 2 x 40GbE QSFP, Modular
PoE capabilities 822W Switching capacity 256 Gbps
Throughput 190.48 Mpps Power configuration 1 x Power Supply (MA-PWR-1100WAC)
Stacking 480G physical + virtual MAC Address 32K Routing Static + Dynamic
DHCP Server + Relay Features Meraki switches include all of the traditional Ethernet features found
in modern enterprise access switches, including Physical dimensions 1.73” x 17.5” x 19.2” (4.4 x 44.5 x 48.8cm)
Weight 17.03 lb (7.72 kg)

฿313,700
[MS390-48P-HW] Cisco Meraki Cloud Managed MS390-48P - Switch - L3 - managed - 48 x 10/100/1000 (PoE)

Device Type Switch - 48 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE)
Power Over Ethernet (PoE) PoE
PoE Budget 437 W
Performance Switching capacity: 256 Gbps ¦ Stacking bandwidth: 480 Gbps
Forwarding rate: 190.48 Mpps
MAC Address Table Size 32K entries
Max Units In A Stack 8
Routing Protocol OSPF, VRRP, OSPFv2, static IP routing, RSTP, STP
Remote Management Protocol DHCP, IPv4, IPv6, RSTP, RADIUS

฿283,100
[MS390-48-HW] Cisco Meraki Cloud Managed MS390-48 - Switch - L3 - managed - 48 x 10/100/1000

Features
Auto-negotiation, IGMP snooping, Syslog support, port mirroring,
E-mail alert, Broadcast Storm Control, PVST, DHCP snooping, ACL support,
QoS, DHCP server, UDLD, DHCP relay, Port Security, hot swappable fan,
Cisco StackPower technology, crossover detection, cloud managed, RBAC,
Root Guard, Loop Guard, MAB, BPDU Guard, CDP

Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

฿237,500
[MS390-24UX-HW] Cisco Meraki Cloud Managed MS390-24UX - Switch - L3 - managed - 24 x 100/1000/2.5G/5G/10GBase-T (UPOE)

Data Link Protocol: 10 Gigabit Ethernet
Number of Ports: 24
Limited lifetime warranty
Cisco Meraki Cloud Managed MS390-24UX - Switch - L3 - Managed
24 x 100/1000/2.5G/5G/10GBase-T (UPOE) - rack-mountable - UPOE (560 W)

฿362,200
[MS390-24U-HW] Cisco Meraki Cloud Managed MS390-24U - Switch - L3 - managed - 24 x 10/100/1000 (UPOE)

Deployment type High-performance Campus & Branch
Interface Ports 24-port GbE UPoE/802.3bt switch
Uplinks 4/8 x 10GbE SFP+ 2 x 40GbE QSFP, Modular
PoE capabilities 830W Switching capacity 208 Gbps
Throughput 154.76 Mpps
Power configuration 1 x Power Supply (MA-PWR-1100WAC)
Stacking 480G physical + virtual MAC Address 32K
Routing Static + Dynamic DHCP Server + Relay
Features Meraki switches include all of the traditional Ethernet features
found in modern enterprise access switches, including
Physical dimensions 1.73” x 17.5” x 19.2” (4.4 x 44.5 x 44.8cm)
Weight 16.63 lb (7.54 kg)

฿179,600
[MS390-24P-HW] Cisco Meraki Cloud Managed MS390-24P - Switch - L3 - managed - 24 x 10/100/1000 (PoE)

Device Type Switch - 24 ports - L3 - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 (PoE)
Power Over Ethernet (PoE) PoE
PoE Budget 445 W
Performance Switching capacity: 208 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
MAC Address Table Size 32K entries
Max Units In A Stack 8

฿164,500
[MS390-24-HW] Cisco Meraki Cloud Managed MS390-24 - Switch - L3 - managed - 24 x 10/100/1000

Features
Auto-negotiation, IGMP snooping, Syslog support, port mirroring,
E-mail alert, Broadcast Storm Control, PVST, DHCP snooping, ACL support,
QoS, DHCP server, UDLD, DHCP relay, Port Security, hot swappable fan,
Cisco StackPower technology, crossover detection, cloud managed, RBAC,
Root Guard, Loop Guard, MAB, BPDU Guard, CDP

Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)

฿139,900
