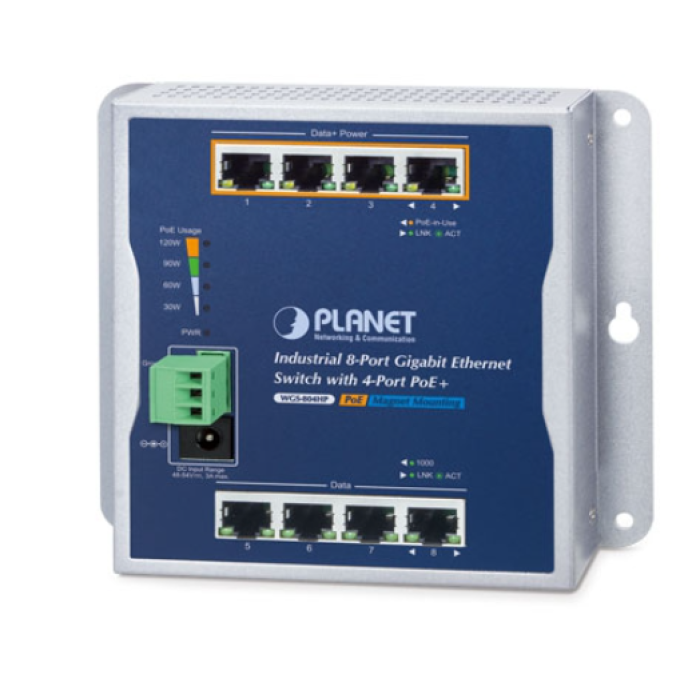

[WGS-804HP] Planet Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+
![[WGS-804HP] Planet Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+](/media/com_eshop/products/resized/WGS-804HP-700x700.png "[WGS-804HP] Planet Industrial 8-Port 10/100/1000T Wall-mounted Gigabit Ethernet Switch with 4-Port PoE+")
MANUFACTURER:
Planet
P/N :
WGS-804HP
Physical Port
8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at/af PoE Injector function (Ports 1 to 4)
8-Port 10/100/1000BASE-T Gigabit RJ45 copper with 4-Port IEEE 802.3at/af PoE Injector function (Ports 1 to 4)
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
PoE Inject Port 4-Port with 802.3af/802.3at PoE injector function (Ports1 to 4)
Connector
Removable 3-pin terminal block for power input
Pin 1/2 for Power (Pin 1: V+ / Pin 2: V-)
Pin 3 for earth ground
DC power jack with 2.0mm central pole
Power Requirements 48V~54V DC, 3A (max.)
Power Consumption/ Dissipation Max.130 watts/443 BTU
Dimensions (W x D x H) 148 x 24.2 x 134 mm
Weight 561g
ESD Protection Contact Discharge 6KV DC
Air Discharge 6KV DC
Enclosure IP30 metal
Installation Wall mount, magnetic wall mount and DIN-rail kit
