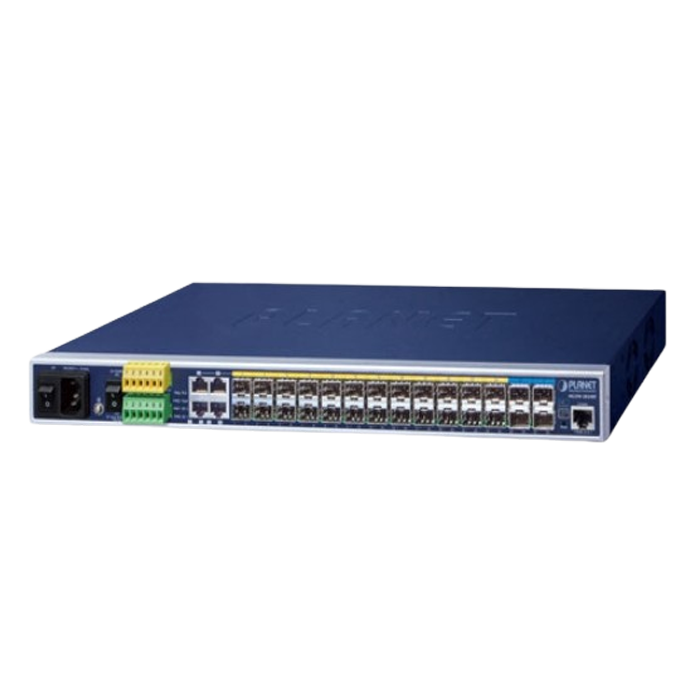

[MGSW-28240F] Planet Layer L3 14-Port 100/1G SFP with 4 shared 10/100/1000T + 10-Port 1G/2.5G SFP + 4-Port 10G SFP+ Metro Ethernet Switch
MANUFACTURER:
Planet
P/N :
MGSW-28240F
14 100/1000BASE-X SFP ports
10 100/1000/2500BASE-X SFP ports
4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
10 100/1000/2500BASE-X SFP ports
4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Copper Ports 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP Ports
14 100/1000BASE-X SFP interfaces (Port-1 to Port-14)
Compatible with 100BASE-FX SFP transceiver
10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24)
Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
SFP+ Ports
4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 443.7 x 200 x 44.2 mm, 1U height
Weight 2.935kg
