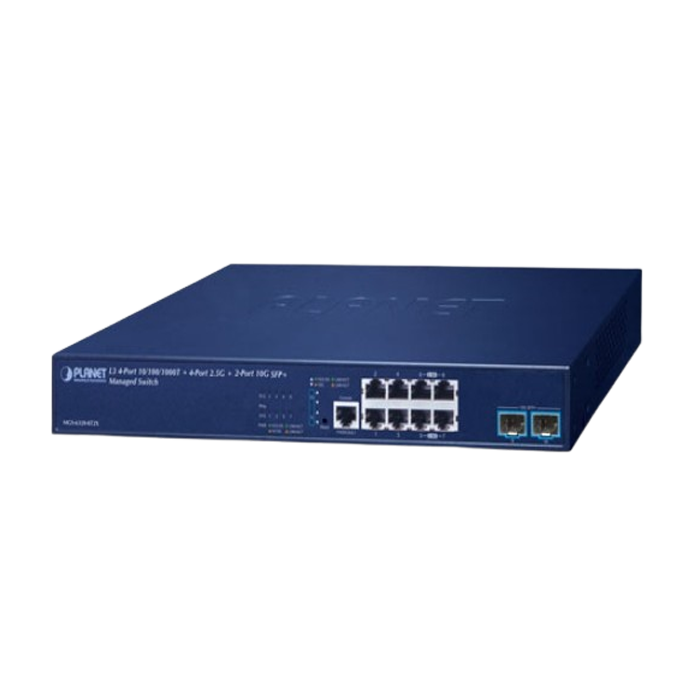

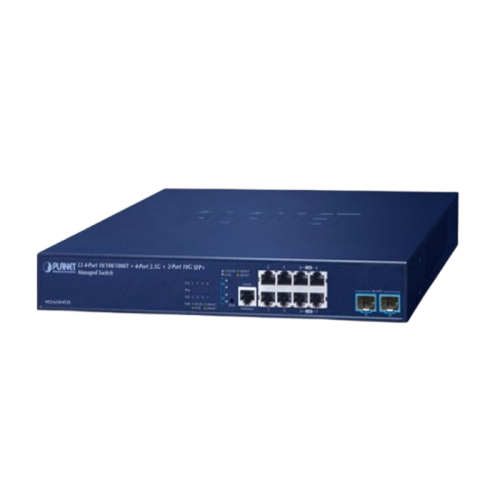

[MGS-6320-8T2X] Planet Layer L3 4-Port 10/100/1000T + 4-Port 2.5G + 2-Port 10G SFP+ Managed Switch
![[MGS-6320-8T2X] Planet Layer L3 4-Port 10/100/1000T + 4-Port 2.5G + 2-Port 10G SFP+ Managed Switch](/media/com_eshop/products/resized/MGS-6320-8T2X-700x700.png "[MGS-6320-8T2X] Planet Layer L3 4-Port 10/100/1000T + 4-Port 2.5G + 2-Port 10G SFP+ Managed Switch")
MANUFACTURER:
Planet
P/N :
MGS-6320-8T2X
4-Port 10/100/1000BASE-T Gigabit Ethernet RJ45 (Port 1 to port 4)
4-Port 10/100/1000/2500BASE-T Gigabit Ethernet RJ45 (Port 5 to port 8)
2-port 10GBASE-X SFP+, backward compatible with 1000BASE-X and 2500BASE-X SFP transceivers (Port 9 to port 10)
4-Port 10/100/1000/2500BASE-T Gigabit Ethernet RJ45 (Port 5 to port 8)
2-port 10GBASE-X SFP+, backward compatible with 1000BASE-X and 2500BASE-X SFP transceivers (Port 9 to port 10)
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports
4x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X interface with Port-1 to Port-4
4x 10/100/1000/2500BASE-T RJ45 auto-MDI/MDI-X interface with Port-5 to Port-8
SFP+ Slots 2 x 1G/2.5G/10GBASE-X SFP interfaces with Port-9 to Port-10
Console 1 x RJ45-to-DB9, RS232 serial port (115200, 8, N, 1)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory default
RAM 512Mbytes
Flash Memory 64Mbytes
Dimensions (W x D x H) 330.2 x 153 x 44mm, 1U height
Weight 1436g
Power Requirements 100~240V AC, 50/60Hz, 1.5A max.
Power Consumption
Max. 9.9 watts/33.76BTU (Power on without any connection)
Max. 18.48 watts/63.02BTU (Full loading)
