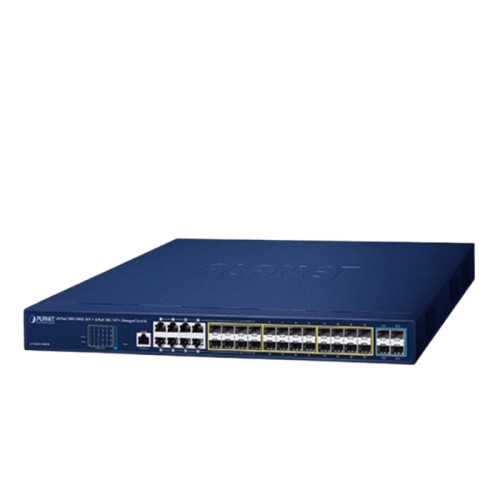

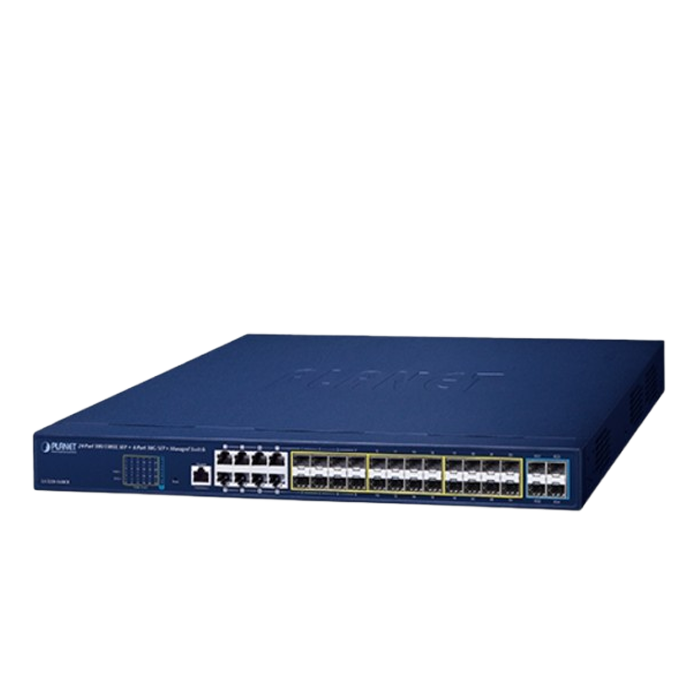

[GS-5220-16S8CR] Planet L2+ 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Managed Switch
![[GS-5220-16S8CR] Planet L2+ 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Managed Switch](/media/com_eshop/products/resized/GS-5220-16S8CR-700x700.png "[GS-5220-16S8CR] Planet L2+ 24-Port 100/1000X SFP + 8-Port Shared TP + 4-Port 10G SFP+ Managed Switch")
MANUFACTURER:
Planet
P/N :
GS-5220-16S8CR
24 100/1000BASE-X SFP ports (Ports 1 to 24)
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports, shared with Ports 1 to 8
4 10GBASE-SR/LR SFP+ slots (Ports XG1 to XG4), backward compatible with 100M/1G/2.5GBASE-X SFP
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports, shared with Ports 1 to 8
4 10GBASE-SR/LR SFP+ slots (Ports XG1 to XG4), backward compatible with 100M/1G/2.5GBASE-X SFP
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (combo),
shared with Ports 1 to 8
SFP/mini-GBIC Slots
24 100/1000BASE-X SFP interfaces (Ports 1 to 24)
Compatible with 100BASE-FX SFP transceiver
SFP+ Slots
4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers
Console 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory default
CPU MIPS 800MHz
RAM 512Mbytes
Flash Memory 32Mbytes
Power Requirements
AC: 100~240V, 50/60Hz
DC: 36-72V
Power Consumption 36.2 watts/102.9 BTU
Dimensions (W x D x H) 440 x 260 x 44 mm, 19-inch, 1U height
Enclosure Metal
Weight 3495g
