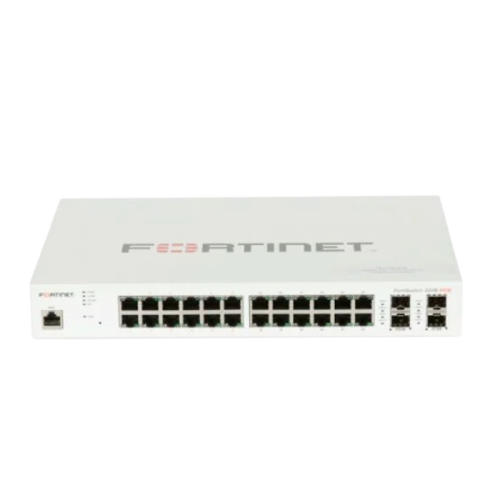

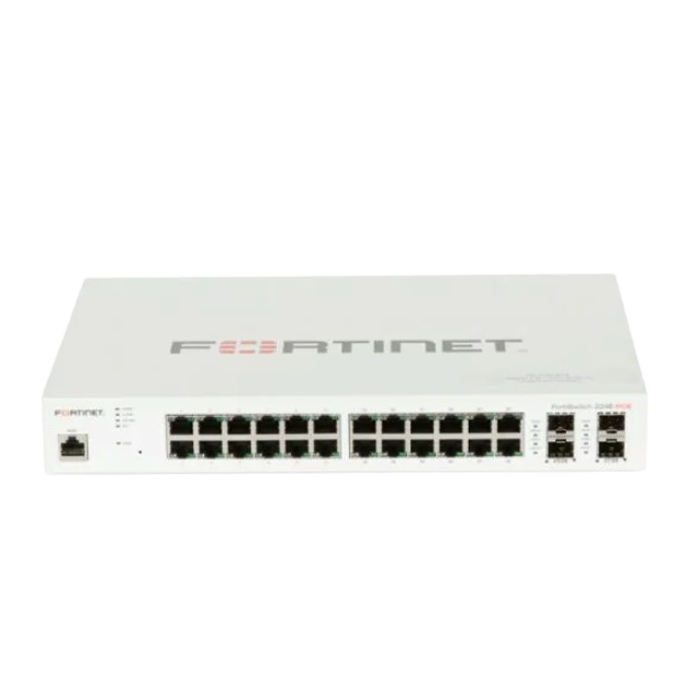

[FS-224E-POE] Fortinet FS-224E-POE, Fortinet FS Switch, 24xGE PoE/4xGE SFP/Outstanding Security
![[FS-224E-POE] Fortinet FS-224E-POE, Fortinet FS Switch, 24xGE PoE/4xGE SFP/Outstanding Security](/media/com_eshop/products/resized/FS-224E-POE-700x700.png "[FS-224E-POE] Fortinet FS-224E-POE, Fortinet FS Switch, 24xGE PoE/4xGE SFP/Outstanding Security")
MANUFACTURER:
FORTINET
P/N :
FS-224E-POE
Quick Specs
Product Code
FS-224E-POE
Total Network Interfaces
24x GE RJ45 ports and 4x GE SFP ports
Power over Ethernet (PoE) Ports
12 (802.3af/802.3at)
PoE Power Budget
180 W
Height x Depth x Width (mm)
44 x 230 x 330
Power Required
100–240V AC, 50–60 Hz
Operating Temperature
32–122°F (0–50°C)
Product Code
FS-224E-POE
Total Network Interfaces
24x GE RJ45 ports and 4x GE SFP ports
Power over Ethernet (PoE) Ports
12 (802.3af/802.3at)
PoE Power Budget
180 W
Height x Depth x Width (mm)
44 x 230 x 330
Power Required
100–240V AC, 50–60 Hz
Operating Temperature
32–122°F (0–50°C)
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%
฿29,700
฿29,700
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Total Network Interfaces
24x GE RJ45 ports and 4x GE SFP ports
Dedicated Management 10/100 Port 1
RJ-45 Serial Console Port 1
Form Factor 1 RU Rack Mount
Power over Ethernet (PoE) Ports 12 (802.3af/802.3at)
PoE Power Budget 180 W
Mean Time Between Failures > 10 years
System Specifications
Switching Capacity (Duplex) 56 Gbps
Packets Per Second (Duplex) 83 Mpps
MAC Address Storage 16 K
Network Latency < 1µs
VLANs Supported 4 K
Link Aggregation Group Size 8
Total Link Aggregation Groups Up to number of ports
Packet Buffers 1.5 MB
DRAM 512 MB
FLASH 128 MB
