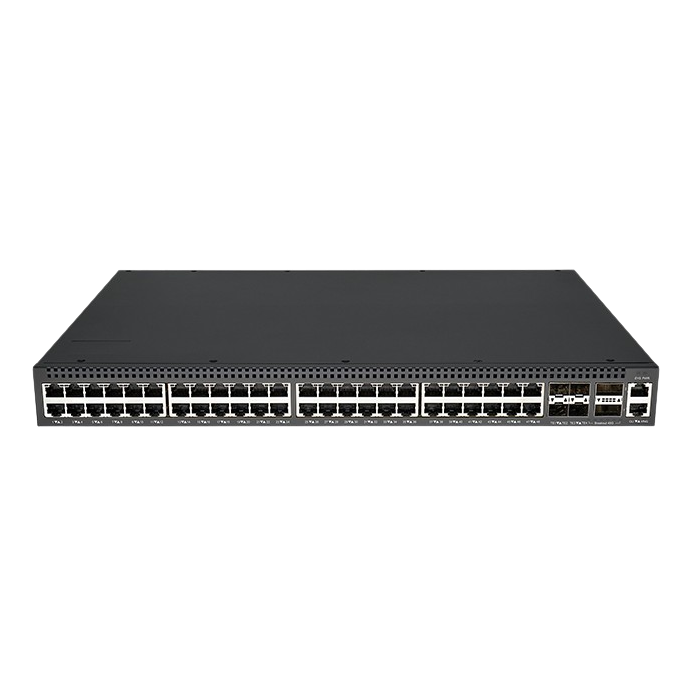

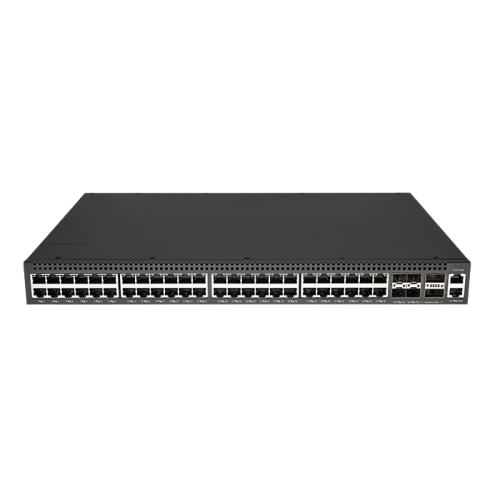

[S5700-48ET4X2Q] BDCOM 48-Port 2.5G RJ45 + 4-Port 10G SFP+ 2-Port 40G QSFP+ L3 Managed Switch
![[S5700-48ET4X2Q] BDCOM 48-Port 2.5G RJ45 + 4-Port 10G SFP+ 2-Port 40G QSFP+ L3 Managed Switch](/media/com_eshop/products/resized/S5700-48ET4X2Q-700x700.png "[S5700-48ET4X2Q] BDCOM 48-Port 2.5G RJ45 + 4-Port 10G SFP+ 2-Port 40G QSFP+ L3 Managed Switch")
MANUFACTURER:
BDCOM
P/N :
S5700-48ET4X2Q
Highlight Features
Supports 48-Port 2.5G RJ45, 4-Port 10G SFP+ and 2-Port 40G QSFP+
Advanced Hardware Architecture and Industry-leading Port Density
Carrier-Level High Reliability Full Layer-3 Functions
Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism
Supports 48-Port 2.5G RJ45, 4-Port 10G SFP+ and 2-Port 40G QSFP+
Advanced Hardware Architecture and Industry-leading Port Density
Carrier-Level High Reliability Full Layer-3 Functions
Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 2 ปี:
RJ45 48-Port 2.5G/GE
SFP+ 4-Port 10G/GE
QSFP+ 2-Port 40G
Console 1-Port RJ45
Switching Capacity 480 Gbps
Forwarding rate 360 Mpps
Chassis Dimensions (WxDxH)(mm) 440*300*44
Package Dimensions (WxDxH)(mm) 576x448x94
Power supply AC: 100V-240V, 50/60Hz
DC: 36~72V
Power consumption <100W
Total output BTU (1000BTU/H=293W) 341.30
Noise@25°C(dBA) 55
MTBF(H) >200,000
Forwarding mode Store-forward
Flash 4GB
DRAM 2GB
MAC 64K
Buffer size(MB) 4.5
Jumbo frame 16K
Routing table
IPv4 16K
IPv6 8K
ARP table
IPv4 16K
IPv6 8K
Total SVI 1K
