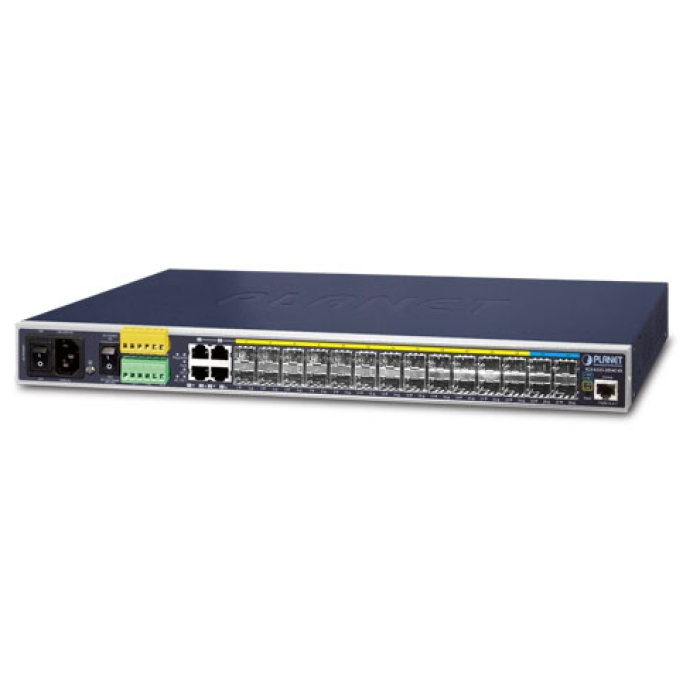

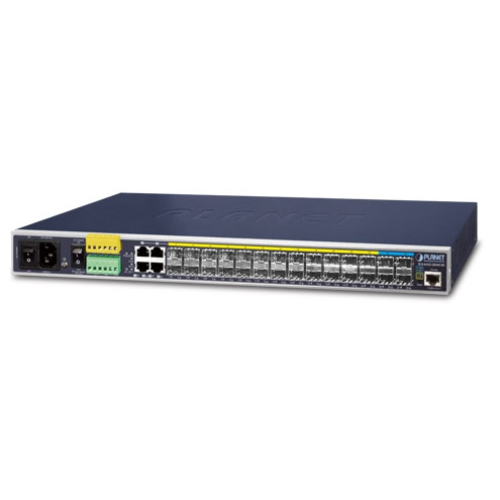

[IGS-6325-20S4C4X] Planet Industrial L3 14-Port 100/1G SFP with 4 Shared TP + 10-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch
![[IGS-6325-20S4C4X] Planet Industrial L3 14-Port 100/1G SFP with 4 Shared TP + 10-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch](/media/com_eshop/products/resized/IGS-6325-20S4C4X-700x700.png "[IGS-6325-20S4C4X] Planet Industrial L3 14-Port 100/1G SFP with 4 Shared TP + 10-Port 1G/2.5G SFP + 4-Port 10G SFP+ Managed Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IGS-6325-20S4C4X
Physical Port
14 100/1000BASE-X SFP slots
10 100/1000/2500BASE-X SFP slots
4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
RJ45 to RS232 console interface for basic management and setup
14 100/1000BASE-X SFP slots
10 100/1000/2500BASE-X SFP slots
4 10/100/1000BASE-T RJ45 ports, shared with Port-1 to Port-4
4 10GBASE-SR/LR SFP+ slots, compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
RJ45 to RS232 console interface for basic management and setup
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 4 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4
SFP/mini-GBIC Slots
14 100/1000BASE-X SFP interfaces (Port-1 to Port-14) Compatible with 100BASE-FX SFP transceiver
10 100/1000/2500BASE-X SFP interfaces (Port-15 to Port-24) Compatible with 100BASE-FX and 2500BASE-X SFP transceiver
SFP+ Slots
4 10GbBASE-SR/LR SFP+ interfaces (Port-25 to Port-28)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
Console 1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory default
Dimensions (W x D x H) 444 x 200 x 44.2 mm, 1U height
Weight 2.935kg
