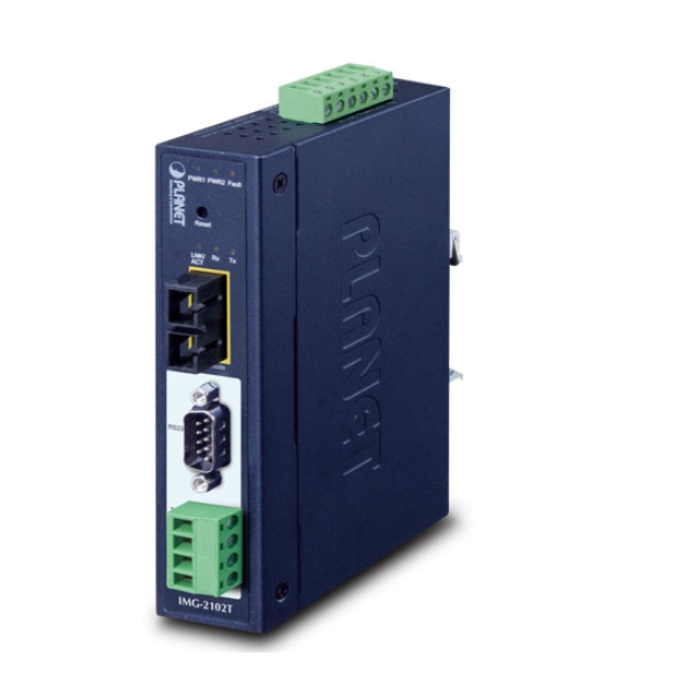

[IMG-2102T] Planet Industrial IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100FX SC, MM/2km, -40~75 degrees C)
![[IMG-2102T] Planet Industrial IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100FX SC, MM/2km, -40~75 degrees C)](/media/com_eshop/products/resized/IMG-2102T-700x700.png "[IMG-2102T] Planet Industrial IP30 Industrial 1-Port RS232/RS422/RS485 Modbus Gateway (1 x 100FX SC, MM/2km, -40~75 degrees C)")
MANUFACTURER:
Planet
P/N :
IMG-2102T
Serial Interface
One DB9 interface that supports RS232
One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 operation
Asynchronous serial data rates up to 921600bps
One DB9 interface that supports RS232
One terminal block interface that supports 2-wire RS485 and 4-wire RS422/RS485 operation
Asynchronous serial data rates up to 921600bps
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Serial Ports IMG-2102T
1 x DB9 male for RS232
1 x 4-Pin Terminal block for RS422 / RS485
Serial Standards RS232 / 4-wire RS422 or RS485 / 2-wire RS485
Baud Rate (Data Rate) 50bps to 921Kbps
Ethernet Port 1 x Duplex SC
Standard 100BASE-FX
Connector Duplex SC
Fiber Mode Multi-mode
Distance 2km
Cable 50/125μm or 62.5/125μm multi-mode fiber cable
Installation DIN-rail kit and wall-mount ear
Enclosure IP 30 metal
Dimensions (W x D x H) 32 x 87.8 x 135 mm
Weight 386g
