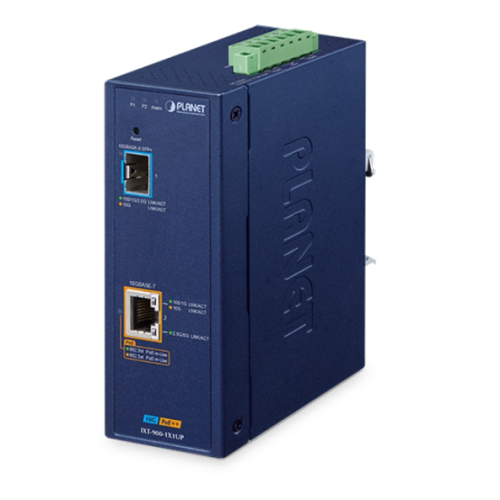

[IXT-900-1X1UP] Planet Industrial 1-Port 10G SFP+ + 1-Port 10GBASE-T 802.3bt PoE++ Managed Media Converter
![[IXT-900-1X1UP] Planet Industrial 1-Port 10G SFP+ + 1-Port 10GBASE-T 802.3bt PoE++ Managed Media Converter](/media/com_eshop/products/resized/IXT-900-1X1UP-700x700.png "[IXT-900-1X1UP] Planet Industrial 1-Port 10G SFP+ + 1-Port 10GBASE-T 802.3bt PoE++ Managed Media Converter")
MANUFACTURER:
Planet
P/N :
IXT-900-1X1UP
Physical Port
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
One 10G/2.5G/1G/100BASE-X SFP+ interface
Supports IEEE802.3bt PoE++ standard
One 10G/5G/2.5G/1G/100BASE-T RJ45 interface with auto MDI/MDI-X function
One 10G/2.5G/1G/100BASE-X SFP+ interface
Supports IEEE802.3bt PoE++ standard
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Interface 1x 10G/5G/2.5G/1G/100BASE-T RJ45 interface
with auto MDI/MDI-X function support IEEE802.3bt PoE++ standard
Fiber Interface 1x 10G/2.5G/1G/100BASE-X SFP+ interface
Reset Button
< 5 sec.: System reboot
> 5 sec.: Factory default
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure IP40 metal case
ESD Protection 4KVDC Contact / 8KVDC Air
Installation Wall-mount and DIN-rail kit installation
Dimensions (W x D x H) 50 x 86.4 x 135mm
Weight 659g
Power Requirement 12~54V DC
