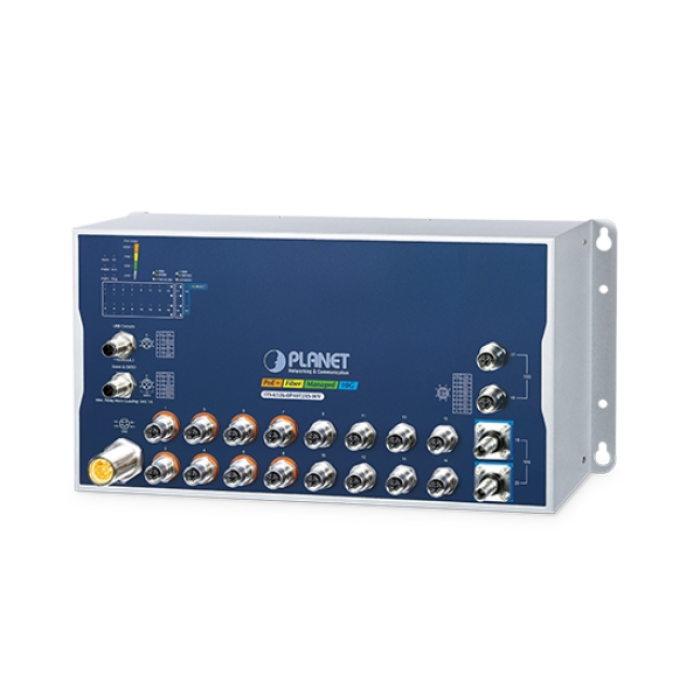

[ITS-6326-16P2TB2XS-WV] Planet Industrial L3 16-Port 10/100/1000T with 8-/16-Port 802.3at PoE M12 + 2-Port 10GBASE-T M12 Bypass + 2-Port 10G Q-ODC Managed Ethernet Switch
![[ITS-6326-16P2TB2XS-WV] Planet Industrial L3 16-Port 10/100/1000T with 8-/16-Port 802.3at PoE M12 + 2-Port 10GBASE-T M12 Bypass + 2-Port 10G Q-ODC Managed Ethernet Switch](/media/com_eshop/products/resized/ITS-6326-16P2TB2XS-WV-700x700.png "[ITS-6326-16P2TB2XS-WV] Planet Industrial L3 16-Port 10/100/1000T with 8-/16-Port 802.3at PoE M12 + 2-Port 10GBASE-T M12 Bypass + 2-Port 10G Q-ODC Managed Ethernet Switch")
MANUFACTURER:
Planet
P/N :
ITS-6326-16P2TB2XS-WV
Physical Port
16 x 10/100/1000BASE-T M12 ports (Ports 1 to 16) with IEEE 802.3at PoE+ injector function
2 x 10GBASE-T M12 ports (Ports 17 to 18) with bypass relay, backward compatible with 5G/2.5G/1GMbps data rate
2 x 10GBASE-X Q-ODC fiber connector (Ports 19 to 20)
16 x 10/100/1000BASE-T M12 ports (Ports 1 to 16) with IEEE 802.3at PoE+ injector function
2 x 10GBASE-T M12 ports (Ports 17 to 18) with bypass relay, backward compatible with 5G/2.5G/1GMbps data rate
2 x 10GBASE-X Q-ODC fiber connector (Ports 19 to 20)
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports,M12, 8-pin X-coded Female Connector
16 x 10/100/1000BASE-T (Ports 1 to 16)
Copper Ports,M12, 8-pin X-coded Female Connector with Bypass Relay
ITS-6326-16P2TB2XS-WV：
2 x 10GBASE-T(Ports 17 to 18) Supports 10G/5G/2.5G/1G/ 100Mbps data rate
PoE Injector Port
16 ports with 802.3at PoE+ injector function (Ports 1 to 16)
Q-ODC Fiber Ports 2 x 10GBASE-X with single-mode fiber (Ports 19 to 20)
Console
USB Data to RS232 serial port (115200, 8, N, 1)
1 x M12 A-coded 5-pin male connector
Reset Button
< 5 sec.: System reboot
> 5 sec.: Factory default
Power Connector 1 x M23 A-coded 5-pin male connector
Number of Power Input 2
Power Input 24 to 110 VDC
Operation Voltage 16.8 to 137.5 VDC
Enclosure IP40 aluminum case
Installation Wall-mount design
Dimensions (W x D x H) 400 x 74 x 195 mm
Weight 4700 g
