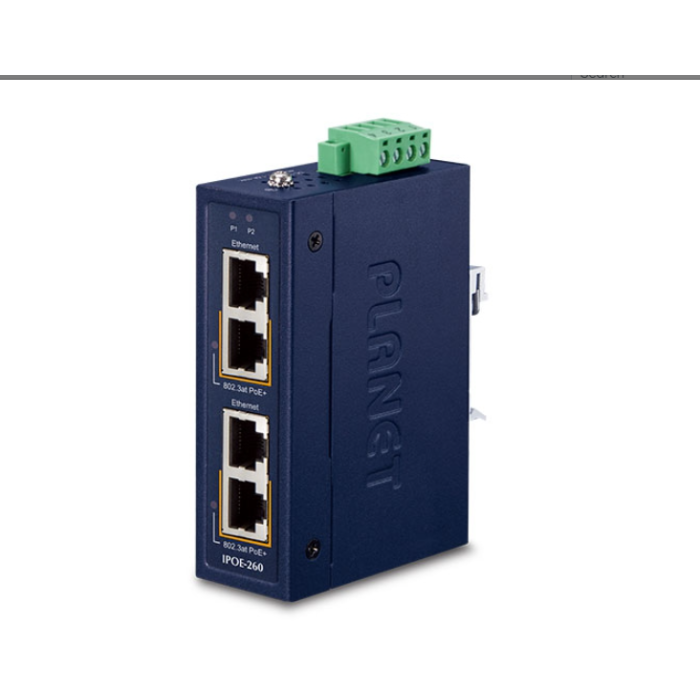

[IPOE-260] Planet Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub
![[IPOE-260] Planet Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub](/media/com_eshop/products/resized/IPOE-260-700x700.png "[IPOE-260] Planet Industrial 2-port 10/100/1000T 802.3at PoE+ Injector Hub")
MANUFACTURER:
Planet
P/N :
IPOE-260
Interface
4 10/100/1000BASE-T RJ45 interfaces
2-port Data + Power output
2-port Data input
1 terminal block for master and slave power input with reverse polarity protection
Power Range: 48 ~ 56V DC redundant power (IPOE-260)
Power Range: 12 ~ 56V DC redundant power (IPOE-260-12V)
LED indicators for power LED and PoE-in-use
4 10/100/1000BASE-T RJ45 interfaces
2-port Data + Power output
2-port Data input
1 terminal block for master and slave power input with reverse polarity protection
Power Range: 48 ~ 56V DC redundant power (IPOE-260)
Power Range: 12 ~ 56V DC redundant power (IPOE-260-12V)
LED indicators for power LED and PoE-in-use
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 2 pair 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports:
Data input port 1 and PoE output port 1
Data input port 2 and PoE output port 2
Connector Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
Data Rate 10/100/1000Mbps
Power Requirements
IPOE-260 48~56V DC, redundant power with reverse polarity protection function.
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 280g
Enclosure IP30 metal case
Installation DIN-rail, wall-mount or side wall-mount design
ESD Protection 6KV
EFT Protection 6KV
