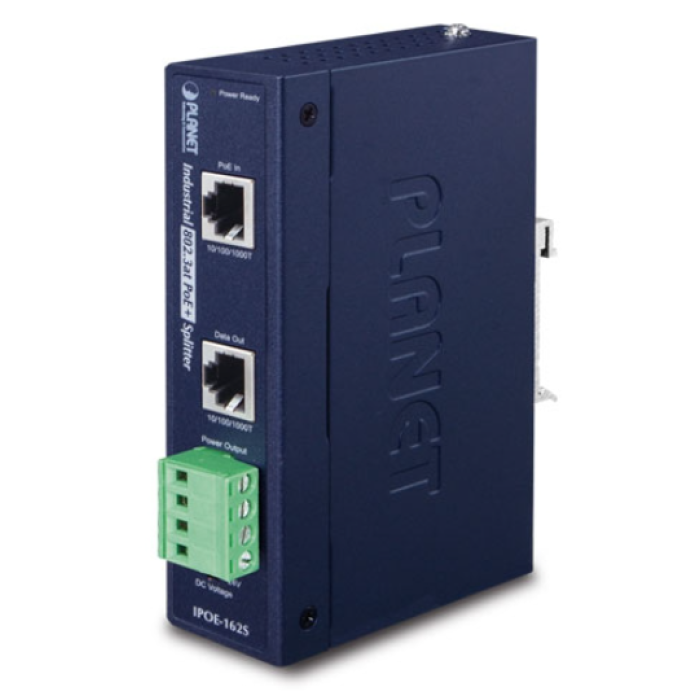

ITK
MANUFACTURER: Planet

P/N : IPOE-162S

Interface
2-port RJ-45 interfaces
1-port PoE Power+ Data input
1-port Data output
2 DC out (4-pin Terminal Block)
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Interface “PoE (Power + Data)” Input Port : 1 x RJ-45 10/100/1000Base-T
“Data” Out Port: 1 x RJ-45 10/100/1000Base-T
DC Out Plug Connector: 1 removable 4-Pin terminal block
LED Indicator System: Power Ready x 1 (Green)
Network Cable 10/100/1000Base-T: 4-Pair UTP Cat. 5, 5e, 6
Distance up to 100m (328ft)
EIA/TIA- 568 100-ohm STP (100m)
Data Rate 10/100/1000Mbps
(vary on Ethernet device attached)
DIP Switch 12V DC / 24V DC output voltage
Power Input 802.3at PoE 48~56V DC
Power Output 12V / 24V DC, max 2A (adjustable)
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 421g
Enclosure IP30 metal case
Installation DIN rail kit and wall mount ear
ESD / EFT Protection 6KV DC
