ITK
MANUFACTURER: Planet

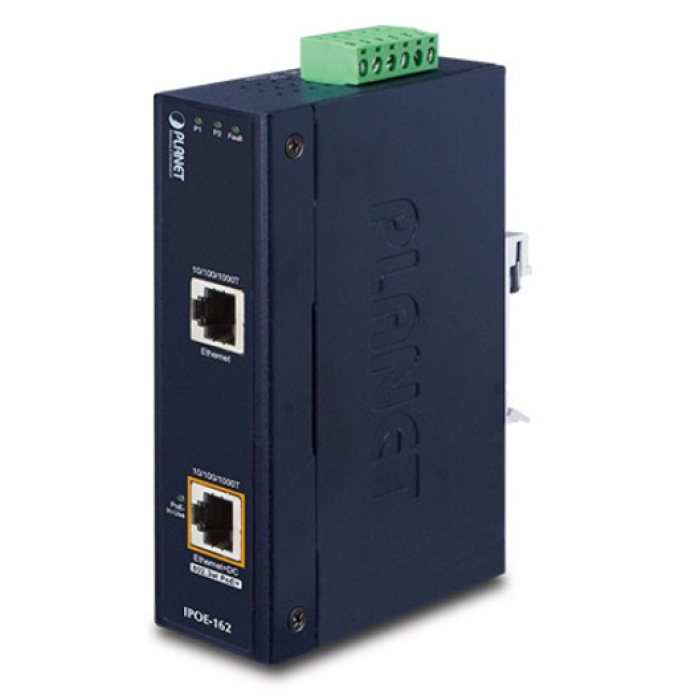

P/N : IPOE-162

Interface
2 RJ45 interfaces
1-port Data + Power output
1-port Data input
One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power)
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Hardware Version 3
Interface Input Port: 1 x RJ45 STP (Data In)
Output Port: 1 x RJ45 STP (Data + Power Out)
Input Power Terminal Block: 1
Data Rate 10/100/1000Mbps
Dimensions (W x D x H) 32 x 87.8 x 135 mm
Weight 489g
Unit Input Voltage 12 ~ 48V DC
Power Consumption 32 watts max.
Number of devices can be powered 1
Installation DIN-rail kit and wall-mount ear
Alarm Provides one relay output for power failure; alarm relay current carry ability: 3A @ DC 24V
Enclosure IP30 slim metal case
