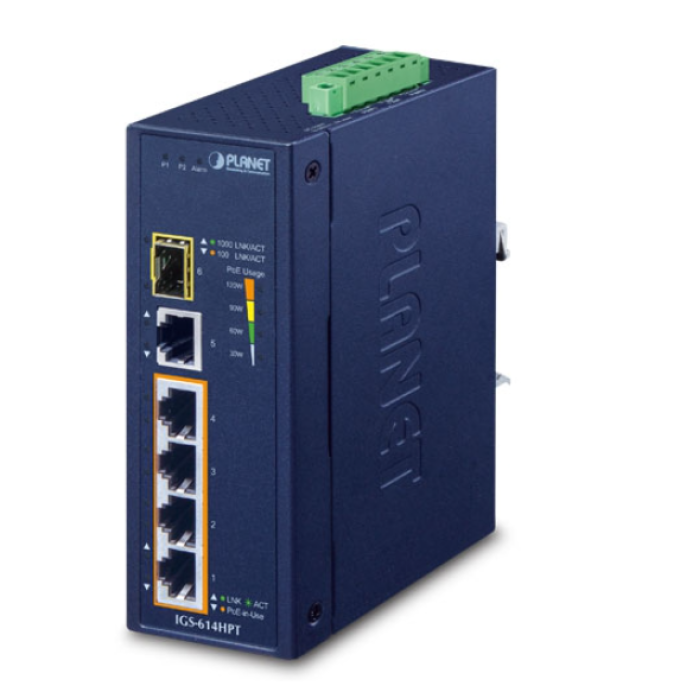

[IGS-614HPT] Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
![[IGS-614HPT] Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch](/media/com_eshop/products/resized/IGS-614HPT-700x700.png "[IGS-614HPT] Planet Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IGS-614HPT
Interface
5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
5 10/100/1000BASE-T Gigabit Ethernet RJ45 copper ports
One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver in dual modes
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
PoE Injector Ports Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
SFP Slots 1 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Power Requirements 12~54V DC, 7A (max.)
Redundant power with reverse polarity protection
Power Consumption Max. 5.94 watts/20BTU@54V DC input (System)
Max. 139 watts/474BTU(Ethernet + PoE Full Loading)
Dimensions(W x D x H) 50 x 86.4 x 135 mm
Weight 623g
Enclosure IP40 metal case
Installation DIN-rail kit and wall-mount kit
ESD Protection 6KV
