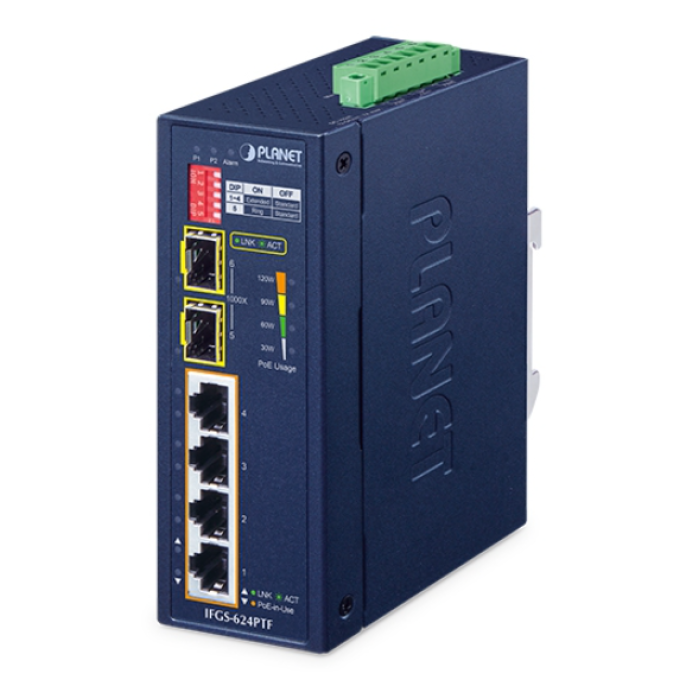

[IFGS-624PTF] Planet Industrial 4-Port 10/100TX 802.3at PoE + 2-Port 1000X SFP Ring Ethernet Switch
![[IFGS-624PTF] Planet Industrial 4-Port 10/100TX 802.3at PoE + 2-Port 1000X SFP Ring Ethernet Switch](/media/com_eshop/products/resized/IFGS-624PTF-700x700.png "[IFGS-624PTF] Planet Industrial 4-Port 10/100TX 802.3at PoE + 2-Port 1000X SFP Ring Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IFGS-624PTF
Physical Port
Four 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports with auto MDI/MDI-X function
Two SFP interfaces, supporting 1000BASE-X transceiver type auto detection
Four 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports with auto MDI/MDI-X function
Two SFP interfaces, supporting 1000BASE-X transceiver type auto detection
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 4 x 10/100BASE-TX RJ45 TP Auto-MDI/MDI-X, auto-negotiation
PoE+ Injector Ports Four ports with 802.3at PoE+ injector function (Ports 1 to 4)
SFP Slots 2 x 1000BASE-X SFP interfaces
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Alarm Provides one relay output for power failure
Alarm Relay current carry ability: 1A @ DC 24V
ESD Protection ±6KV air gap discharge
±6KV contact discharge
Surge Immunity 6KV DC
Enclosure IP40 type metal case
Installation DIN-rail kit and wall-mount ear
Dimensions (W x D x H) 50 x 86.1 x 135mm
Weight 613g
