MANUFACTURER: Planet

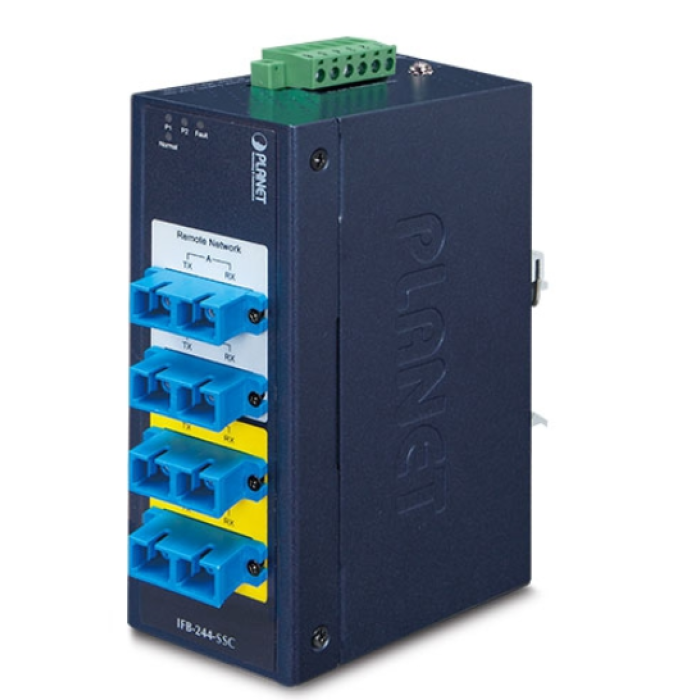

P/N : IFB-244-SSC

Physical Port
2-channel duplex or 4-channel simplex fiber connection with optical bypass function
Supports 100Gbps/40Gbps/10Gbps/1Gbps and 100Mbps fiber connections
Available in single mode or multimode
Available in LC/SC connectors
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Optic Interfaces IFB-244-SSC: 4 x Duplex SC
IFB-244-MLC: 4 x Duplex LC
Dimensions (W x D x H) IFB-244-SSC/MSC: 50 x 87.8 x 135 mm
Weight IFB-244-SSC: 485g
Bypass Insertion Loss Typical: 1.0dB
Max: 1.5dB
Bypass Switching Time < 8ms
Speed 100Gbps/40Gbps/10Gbps/1Gbps/100Mbps
ESD Protection Air 8kV, Contact 6kV
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Power Requirements
Dual 9-48V DC with reverse polarity protection 24V AC
