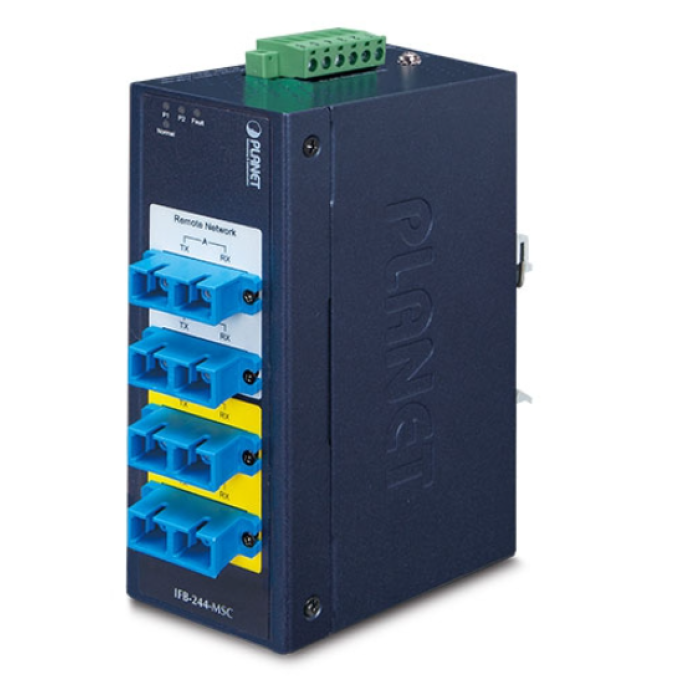

[IFB-244-MSC] Planet Industrial 2-Channel Optical Fiber Bypass Switch – multimode SC connector
![[IFB-244-MSC] Planet Industrial 2-Channel Optical Fiber Bypass Switch – multimode SC connector](/media/com_eshop/products/resized/IFB-244-MSC-700x700.png "[IFB-244-MSC] Planet Industrial 2-Channel Optical Fiber Bypass Switch – multimode SC connector")
MANUFACTURER:
Planet
P/N :
IFB-244-MSC
Physical Port
2-channel duplex or 4-channel simplex fiber connection with optical bypass function
Supports 100Gbps/40Gbps/10Gbps/1Gbps and 100Mbps fiber connections
Available in single mode or multimode
Available in LC/SC connectors
2-channel duplex or 4-channel simplex fiber connection with optical bypass function
Supports 100Gbps/40Gbps/10Gbps/1Gbps and 100Mbps fiber connections
Available in single mode or multimode
Available in LC/SC connectors
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Optic Interfaces IFB-244-MSC: 4 x Duplex SC
Optic Mode IFB-244-MSC Multimode
Bypass Insertion Loss Typical: 1.0dB
Max: 1.5dB
Bypass Switching Time < 8ms
Speed 100Gbps/40Gbps/10Gbps/1Gbps/100Mbps
ESD Protection Air 8kV, Contact 6kV
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure.
Alarm relay current carry ability:1A@24V DC
Dimensions (W x D x H) 50 x 87.8 x 135 mm
Weight IFB-244-MSC: 485g
