ITK

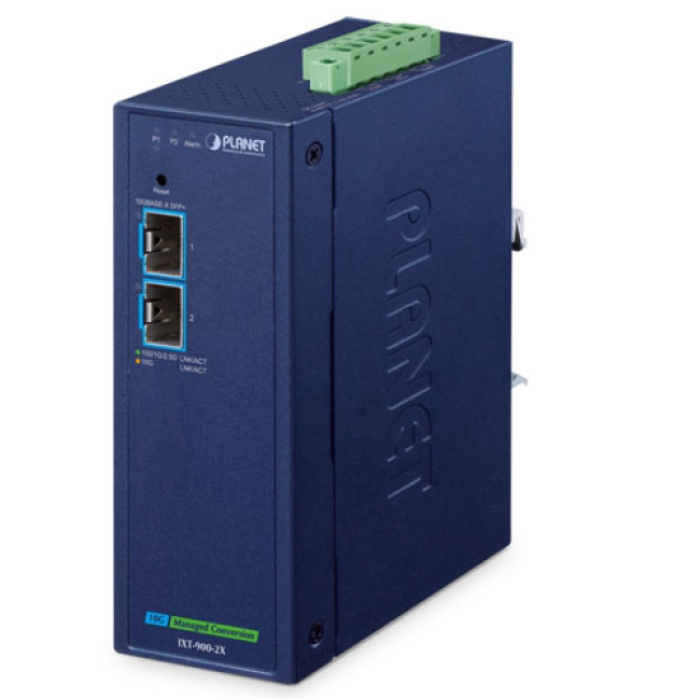

MANUFACTURER: Planet

P/N : IXT-900-2X

Physical Port
Two 10G/2.5G/1G/100BASE-X SFP+ interfaces
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Fiber Interface 2x 10G/2.5G/1G/100BASE-X SFP+ interface
Reset Button < 5 sec.: System reboot
> 5 sec.: Factory default
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for Alarm, Pin 5/6 for Power 2
Alarm One relay output for power failure. Alarm relay current carry ability: 1A @ 24VDC
Enclosure IP40 metal case
ESD Protection 4KVDC Contact / 8KVDC Air
Installation Wall-mount and DIN-rail kit installation
Dimensions (W x D x H) 50 x 86.4 x 135mm
Weight 576g
Power Requirement 9~48V DC or 24V AC
Power Consumption 3.2W/10.98BTU (No Loading) / 5.6W/19.1BTU (Full Loading)
