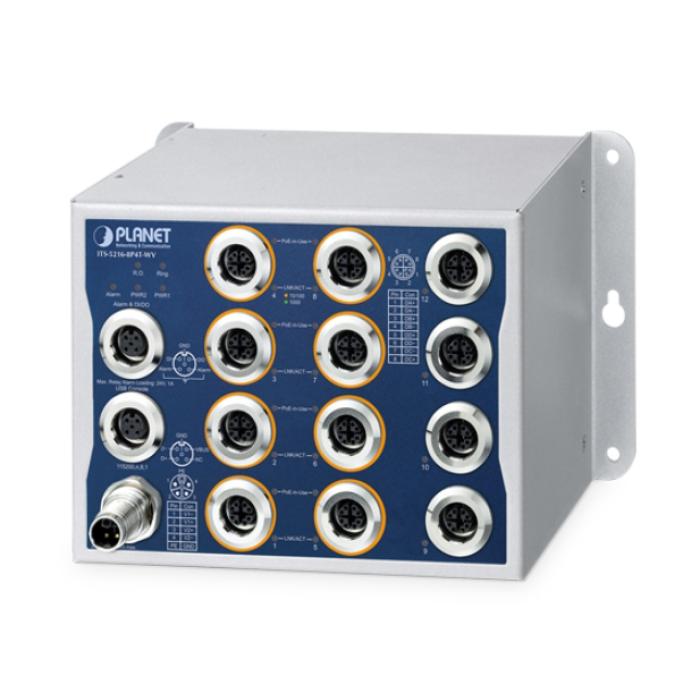

[ITS-5216-8P4T-WV] Planet Industrial L2+ 8-Port 10/100/1000T 802.3at PoE M12 + 4-Port 10/100/1000T M12 Managed Ethernet Switch
![[ITS-5216-8P4T-WV] Planet Industrial L2+ 8-Port 10/100/1000T 802.3at PoE M12 + 4-Port 10/100/1000T M12 Managed Ethernet Switch](/media/com_eshop/products/resized/ITS-5216-8P4T-WV-700x700.png "[ITS-5216-8P4T-WV] Planet Industrial L2+ 8-Port 10/100/1000T 802.3at PoE M12 + 4-Port 10/100/1000T M12 Managed Ethernet Switch")
MANUFACTURER:
Planet
P/N :
ITS-5216-8P4T-WV
Physical Port
12-port 10/100/1000BASE-T vibration-proof and dustproof M12 X-coded female connectors with 8-port IEEE 802.3at Power over Ethernet Plus Injector function
One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup
One M12 A-coded 5-pin male connector with alarm, digital input and digital output functions
One M12 K-coded 5-pin male connector with input voltage range of 24 to 110 VDC (Operating voltage: 16.8 to 137.5 VDC)
12-port 10/100/1000BASE-T vibration-proof and dustproof M12 X-coded female connectors with 8-port IEEE 802.3at Power over Ethernet Plus Injector function
One M12 A-coded 5-pin male connector for USB data to RS232 console interface for basic management and setup
One M12 A-coded 5-pin male connector with alarm, digital input and digital output functions
One M12 K-coded 5-pin male connector with input voltage range of 24 to 110 VDC (Operating voltage: 16.8 to 137.5 VDC)
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports 12 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports
PoE Inject Ports
8 x M12, 8-pin X-coded female connector, 10/100/1000BASE-T auto-MDI/MDI-X ports (Port-1 to Port-8)
Console USB Data to RS232 serial port (115200, 8, N, 1)
1 x M12 A-coded 5-pin female connector
Reset Button
< 5 sec.: System reboot
> 5 sec.: Factory default
Dimensions (W x D x H) 176 x 107 x 110 mm
Weight 2234g
Enclosure IP50 metal case
Installation Wall-mount
