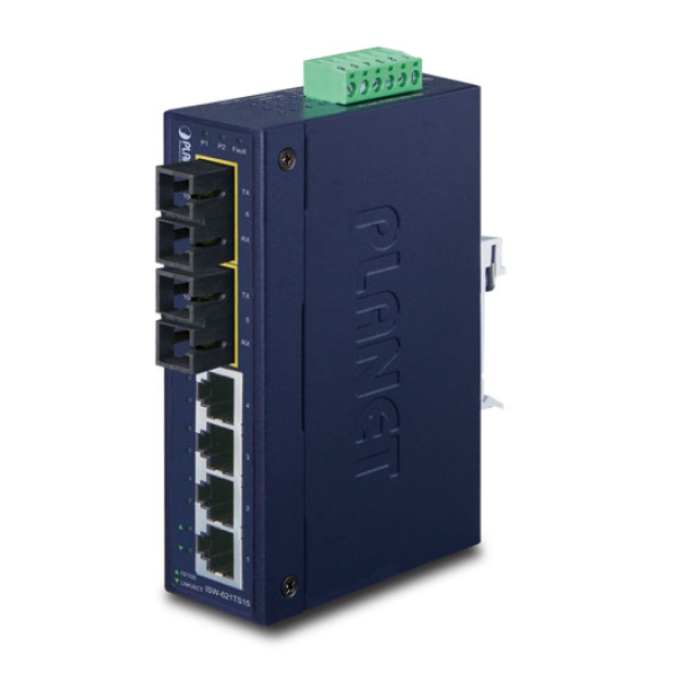

[ISW-621TS15] Planet Industrial 4+2 100FX Port Single-mode Industrial Ethernet Switch - 20km (-40~75 degrees C operating temperature)
![[ISW-621TS15] Planet Industrial 4+2 100FX Port Single-mode Industrial Ethernet Switch - 20km (-40~75 degrees C operating temperature)](/media/com_eshop/products/resized/ISW-621TS15-700x700.png "[ISW-621TS15] Planet Industrial 4+2 100FX Port Single-mode Industrial Ethernet Switch - 20km (-40~75 degrees C operating temperature)")
MANUFACTURER:
Planet
P/N :
ISW-621TS15
Physical Port
4-port 10/100BASE-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
Two 100BASE-FX interfaces on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
Two 100BASE-FX interfaces on ISW-621TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance
4-port 10/100BASE-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
Two 100BASE-FX interfaces on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
Two 100BASE-FX interfaces on ISW-621TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Interface Ports
4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X
Cable
10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 442g
Power Requirements 12~48V DC
Redundant power with polarity reverse protection function
Power Consumption / Dissipation Max. 16 watts / 54 BTU
Installation DIN rail kit and wall mount ear
Optical Interface
Wavelength ISW-621TS15: 1310nm
Launch Power ISW-621TS15: Max. 0dBm, Min. -20dBm
Max. Input Power ISW-621TS15: 0dBm
