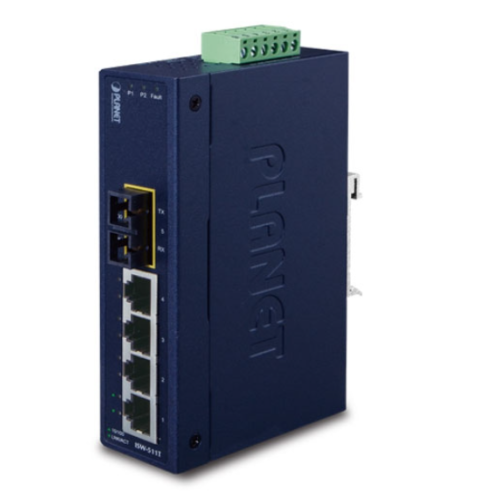

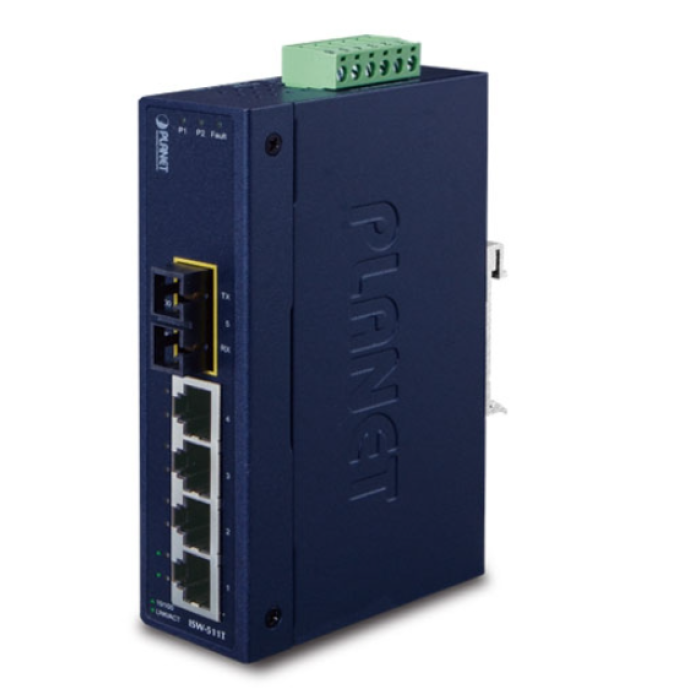

[ISW-511T] Planet Industrial 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40 ~ 75 degrees C operating temperature)
![[ISW-511T] Planet Industrial 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40 ~ 75 degrees C operating temperature)](/media/com_eshop/products/resized/ISW-511T-700x700.png "[ISW-511T] Planet Industrial 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40 ~ 75 degrees C operating temperature)")
MANUFACTURER:
Planet
P/N :
ISW-511T
Physical Port
4-port 10/100BASE-TX RJ-45 with auto MDI / MDI-X function for ISW-511T series
1-port 100BASE-FX interface on ISW-511T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
1-port 100BASE-FX interface on ISW-511TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance
4-port 10/100BASE-TX RJ-45 with auto MDI / MDI-X function for ISW-511T series
1-port 100BASE-FX interface on ISW-511T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
1-port 100BASE-FX interface on ISW-511TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Copper Ports
4 x 10/100BASE-TX, auto negotiation, auto-MDI / MDI-X
Cable
10BASE-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.)
100BASE-TX : 2-pair UTP Cat. 5 cable (100meters, max.)
Optical
Frequency ISW-511T: 1310nm
Launch Power ISW-511T: Max. -14dBm, Min. -20dBm
Max. Input Power ISW-511T: -14dBm
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 436g
Power Requirements 12~48V DC
Redundant power with polarity reverse protection function
Power Consumption / Dissipation 13.7 watts / 46 BTU
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure
Alarm relay current carry ability: 1A @ DC 24V
