MANUFACTURER: Planet

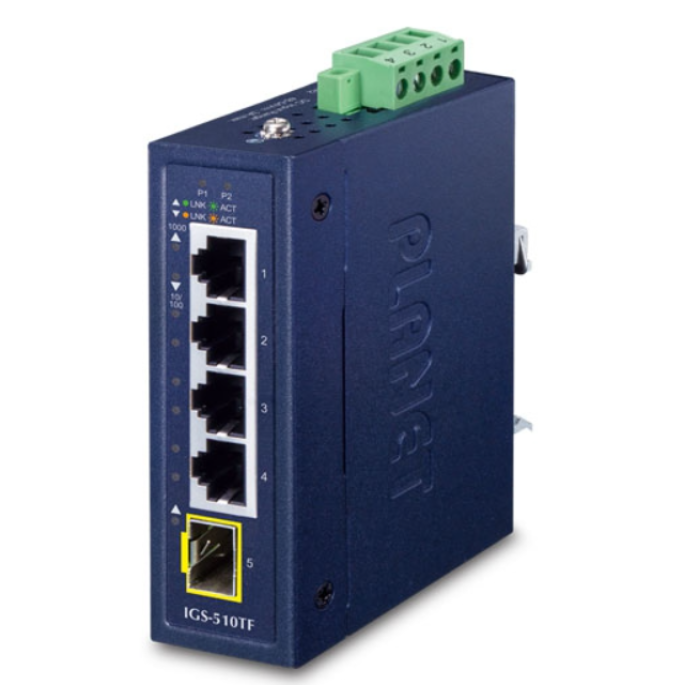

P/N : IGS-510TF

Physical Port
4-port 10/100/1000BASE-T RJ45 with auto-MDI/MDI-X function
One SFP slot, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Hardware version 2
Copper Ports
4-port 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation
SFP Slots 1 1000BASE-SX/LX/BX SFP interface
Compatible with 100BASE-FX SFP
Connector Removable 4-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for Power 2
ESD Protection 6KV
Power Requirements
9~48V DC, redundant power with reverse polarity protection, 24V AC power support
Power Consumption / Dissipation 2.4 watts/8.1BTU
Installation DIN-rail kit and wall-mount ear
Enclosure IP30 metal case
Dimensions (W x D x H) 30 x 70 x 104 mm
Weight 239g
