MANUFACTURER: Planet

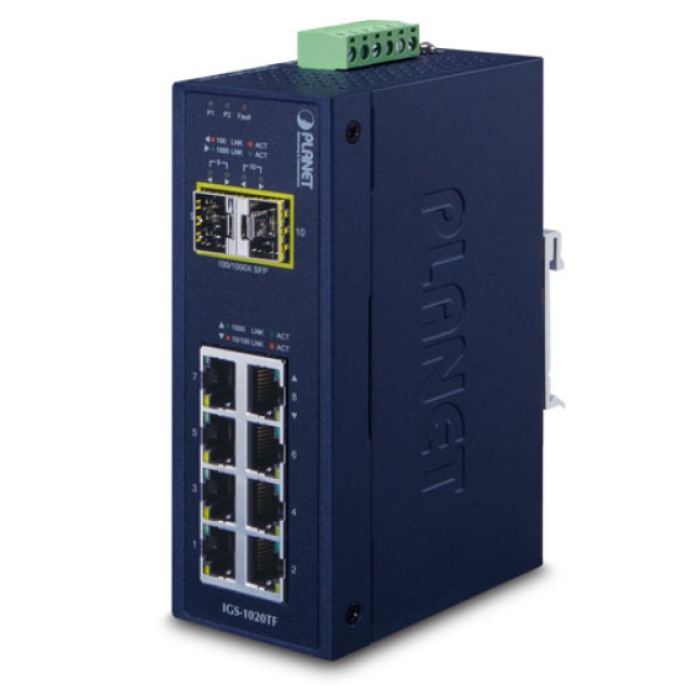

P/N : IGS-1020TF

Physical Port
8-port 100/1000BASE-T RJ45 with auto MDI/MDI-X function
2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver type auto-detection
ราคาพิเศษ : 02-460-9200 / Add ID Line @


Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:

ฝ่ายขาย ADD LINE : @itk.co.th

support2

  เพิ่มเพื่อน  wnv0773y  chat on facebook

Phone  064-589-9386 คุณอุ๊ ฝ่ายขาย
Phone  064-589-9387 คุณนิด ฝ่ายขาย
Phone  096-713-3925 คุณหยุ่น ฝ่ายขาย
Phone  093-947-3375 คุณนัท ฝ่ายขาย Solution
Phone  097-285-3475 คุณเกียรติ ฝ่ายขาย

รับประกันสินค้า 5 ปี:
- +
Hardware Specifications
Copper Ports 8 x 100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation
SFP/mini-GBIC Slots
2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX SFP
Switch Processing Scheme Store-and-Forward
Switch Fabric 20Gbps (non-blocking)
Switch Throughput (packet per second) 14.88Mpps@64bytes
MAC Address Table 4K entries
Flow Control Back pressure for half duplex
IEEE 802.3x pause frame for full duplex
Jumbo Frame 9216 bytes
ESD Protection 6KV DC
Enclosure IP30 type metal case
Installation DIN rail kit and wall-mount ear
Dimensions (W x D x H) 50 x 87.8 x 135 mm
Weight 540g
