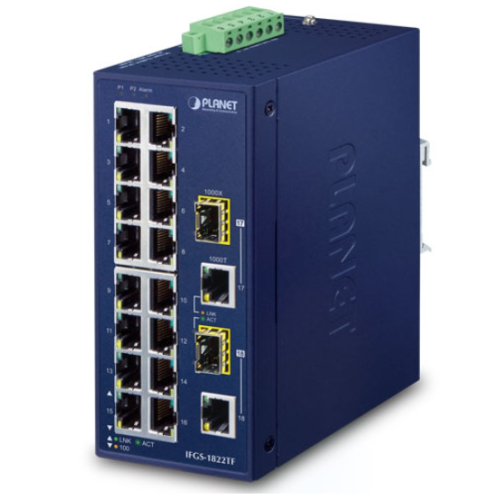

[IFGS-1822TF] Planet Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch
![[IFGS-1822TF] Planet Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch](/media/com_eshop/products/resized/IFGS-1822TF-700x700.png "[IFGS-1822TF] Planet Industrial 16-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IFGS-1822TF
Physical Port
16-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
2-port 10/100/1000BASE-T and 1000BASE-X combo interface
16-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
2-port 10/100/1000BASE-T and 1000BASE-X combo interface
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Fast Ethernet Copper Ports 16 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Ethernet Copper Ports Two 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Port-17 and Port-18)
SFP Slots Two 1000BASE-SX/LX/BX SFP interfaces
(shared with Port-17 and Port-18)
ESD Protection 6KV DC
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H) 66 x 107 x 152 mm
Weight 870g
Power Requirements Dual 12~48V DC or one 24V AC
Power Consumption Max. 6.3 watts/21.4BTU (Ethernet full loading)
