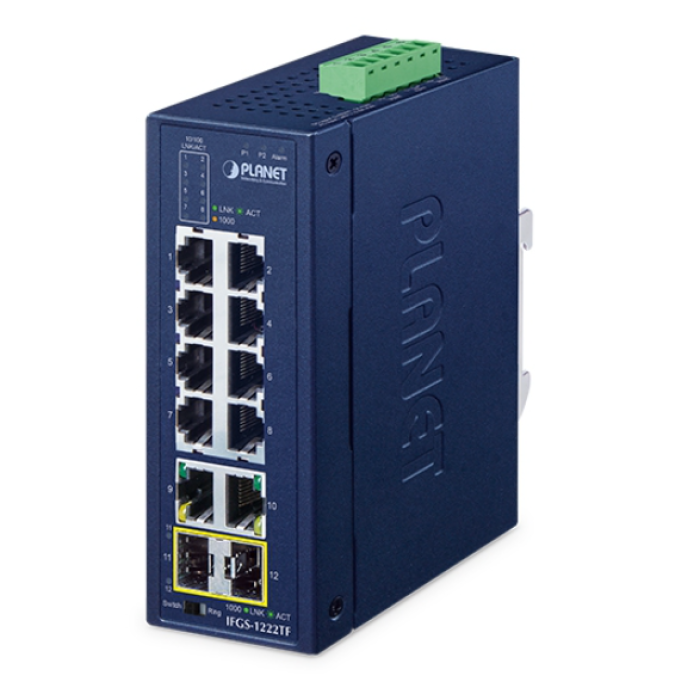

[IFGS-1222TF] Planet Industrial 8-Port 10/100TX + 2-Port 10/100/1000T + 2-Port 1000X SFP Ring Ethernet Switch
![[IFGS-1222TF] Planet Industrial 8-Port 10/100TX + 2-Port 10/100/1000T + 2-Port 1000X SFP Ring Ethernet Switch](/media/com_eshop/products/resized/IFGS-1222TF-700x700.png "[IFGS-1222TF] Planet Industrial 8-Port 10/100TX + 2-Port 10/100/1000T + 2-Port 1000X SFP Ring Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IFGS-1222TF
Physical Port
Eight 10/100BASE-TX RJ45 ports with auto MDI/MDI-X function (Port 1 to port 8).
Two 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X function (Port 9 to port 10).
Two SFP interfaces, supporting 1000BASE-X transceiver type auto detection (Port 11 to port 12).
Eight 10/100BASE-TX RJ45 ports with auto MDI/MDI-X function (Port 1 to port 8).
Two 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X function (Port 9 to port 10).
Two SFP interfaces, supporting 1000BASE-X transceiver type auto detection (Port 11 to port 12).
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
10/100TX Copper Ports 8 x 10/100BASE-TX RJ45 TP
Auto-MDI/MDI-X, auto-negotiation, Port 1 to Port 8
10/100/1000T Copper Ports 2 x 10/100/1000BASE-T RJ45 TP
Auto-MDI/MDI-X, auto-negotiation, Port 9 to Port 10
1000X SFP Slots 2 x 1000BASE-X SFP interfaces, Port 11 to Port 12
Connector Removable 6-pin terminal block
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
Enclosure IP30-rated metal case
Installation DIN-rail kit and wall-mount ear
Dimensions (W x D x H) 50 x 86.4 x 135 mm
Weight 545g
Power Requirements DC 9~48V or AC 24V
Redundant power with reverse polarity protection
