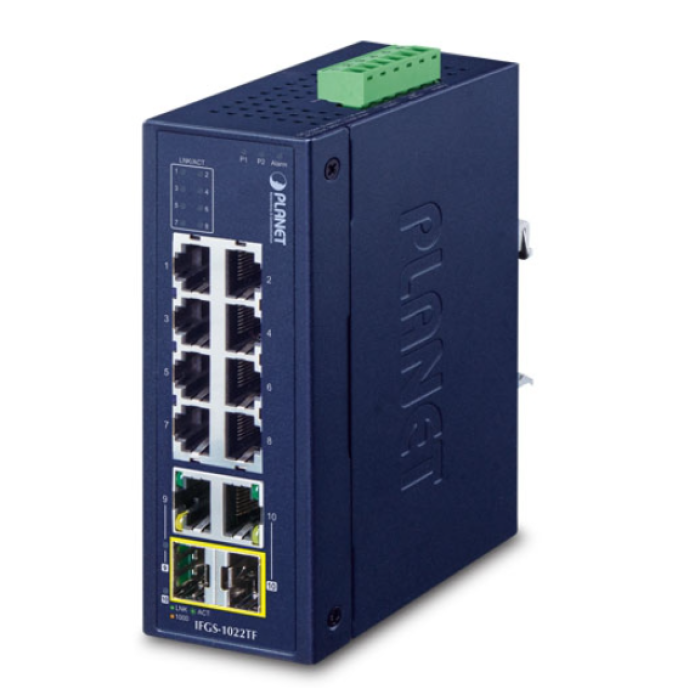

[IFGS-1022TF] Planet Industrial 8-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch
![[IFGS-1022TF] Planet Industrial 8-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch](/media/com_eshop/products/resized/IFGS-1022TF-700x700.png "[IFGS-1022TF] Planet Industrial 8-Port 10/100TX + 2-Port Gigabit TP/SFP Combo Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IFGS-1022TF
Physical Port
8 x 10/100BASE-TX Fast Ethernet RJ45 ports (Port-1 to Port-8)
2 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
2 x 1000BASE-SX/LX/BX SFP+ interfaces (Port-9 and Port-10)
8 x 10/100BASE-TX Fast Ethernet RJ45 ports (Port-1 to Port-8)
2 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports (Port-9 and Port-10)
2 x 1000BASE-SX/LX/BX SFP+ interfaces (Port-9 and Port-10)
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Fast Ethernet Copper Ports 8 x 10/100BASE-TX RJ45 auto-MDI/MDI-X ports
Gigabit Ethernet Copper Ports 2 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
(shared with Port-9 and Port-10)
SFP Slots 2 x 1000BASE-SX/LX/BX SFP interfaces (shared with Port-9 and Port-10)
Enclosure IP30 metal case
Installation DIN-rail kit and wall-mount kit
Connector Removable 6-pin terminal block for power input
Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2
Alarm
One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC
Dimensions (W x D x H) 50 x 87.8 x 135 mm
Weight 534g
Power Requirements
Dual 9~48V DC
24V AC
Power Consumption Max. 12.3 watts/42BTU
ESD Protection 6KV DC
