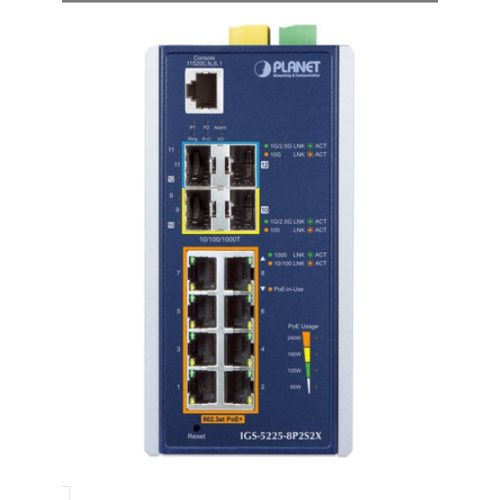

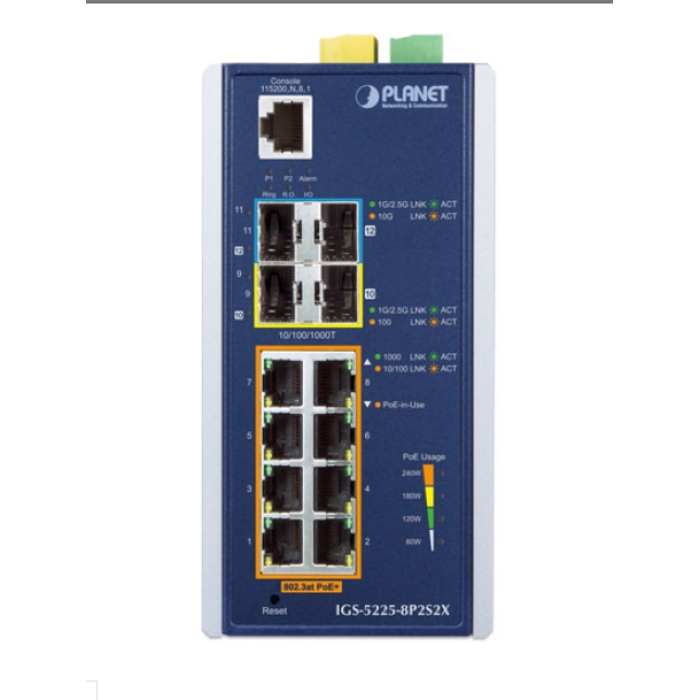

[IGS-5225-8P2S2X] Planet Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch
![[IGS-5225-8P2S2X] Planet Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch](/media/com_eshop/products/resized/IGS-5225-8P2S2X-700x700.png "[IGS-5225-8P2S2X] Planet Industrial L3 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/2.5G SFP + 2-Port 10G SFP+ Managed Ethernet Switch")
MANUFACTURER:
Planet
P/N :
IGS-5225-8P2S2X
Physical Port
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
2 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function
2 100/1000/2500BASE-X mini-GBIC/SFP slots for SFP type auto detection
2 10GBASE-SR/LR SFP+ slots, backward compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP
ราคาพิเศษ : 02-460-9200 / Add ID Line @
Contact Sales สอบถามราคาพิเศษเพิ่มเติม ได้ที่:
ฝ่ายขาย ADD LINE : @itk.co.th
064-589-9386 คุณอุ๊ ฝ่ายขาย
064-589-9387 คุณนิด ฝ่ายขาย
096-713-3925 คุณหยุ่น ฝ่ายขาย 093-947-3375 คุณนัท ฝ่ายขาย Solution
097-285-3475 คุณเกียรติ ฝ่ายขาย
รับประกันสินค้า 5 ปี:
Hardware Version 4
Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
SFP/mini-GBIC Slots
2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10)
Compatible with 100BASE-FX and 2500BASE-X SFP
SFP+ Slots
2 10GbBASE-SR/LR SFP+ interfaces (Port-11 and Port-12)
Compatible with 1000BASE-SX/LX/BX and 2500BASE-X SFP transceiver
PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1)
Reset Button
< 5 sec: System reboot
> 5 sec: Factory default
Installation DIN rail kit and wall-mount kit
Enclosure IP30 aluminum case
Dimensions (W x D x H) 86 x 107.3 x 152 mm
Weight 1353 g
