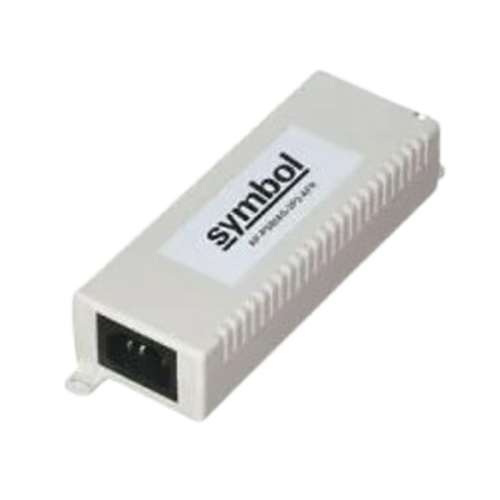

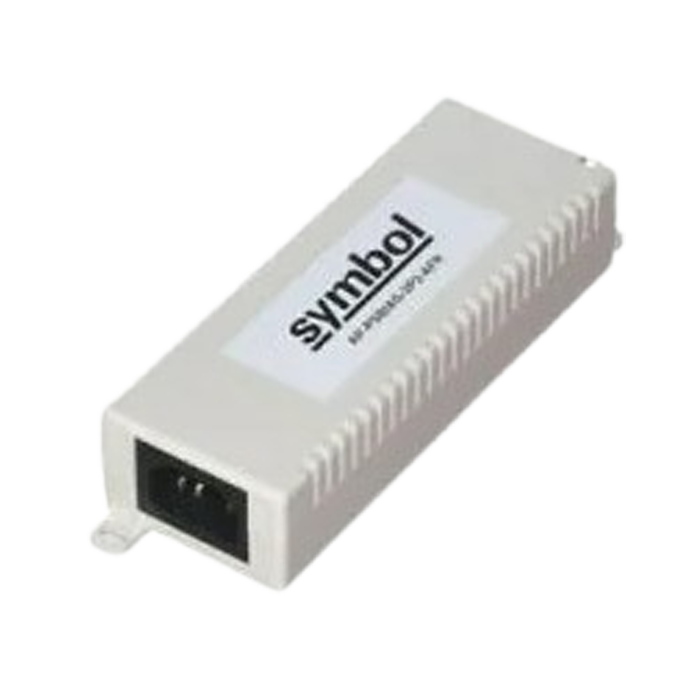

[AP-PSBIAS-2P2-AFR] Extreme AP Series Power over Ethernet Injector, 2-ports PoE, 802.3af/at, 100-240V
![[AP-PSBIAS-2P2-AFR] Extreme AP Series Power over Ethernet Injector, 2-ports PoE, 802.3af/at, 100-240V](/media/com_eshop/products/resized/AP-PSBIAS-2P2-AFR-700x700.png "[AP-PSBIAS-2P2-AFR] Extreme AP Series Power over Ethernet Injector, 2-ports PoE, 802.3af/at, 100-240V")
Quick Spec
Model AP-PSBIAS-2P2-AFR
Standards supported IEEE 802.3af
PoE output power 15.4W per port
Input voltage range 100-240V AC
Input frequency range 50-60Hz
Output voltage range 48V DC
Output current range 0.32A per port
Operating temperature range 0°C to 40°C (32°F to 104°F)
Storage temperature range -20°C to 70°C (-4°F to 158°F)
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%
฿0
฿0
Operating humidity 10% to 90% non-condensing
Storage humidity 5% to 95% non-condensing
Weight 0.5 lbs (0.2 kg)
LED indicators Power, PoE, fault, and overload
Surge protection Built-in surge protection for power and data lines
Ethernet ports 2 x 10/100 Mbps Ethernet RJ-45 ports
Maximum cable length 100 meters (328 feet) for both power and data
Standards compliance RoHS, WEEE, CE, FCC Part 15 Class B, ICES-003 Class B
Safety compliance UL60950-1, EN60950-1, IEC60950-1, CE
Certifications Wi-Fi Alliance certified, Cisco Compatible Extensions (CCX)
