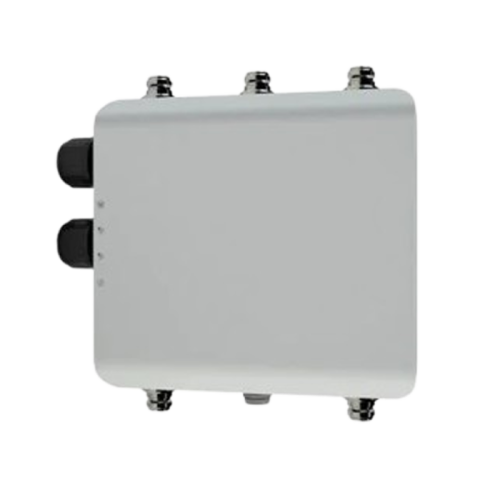

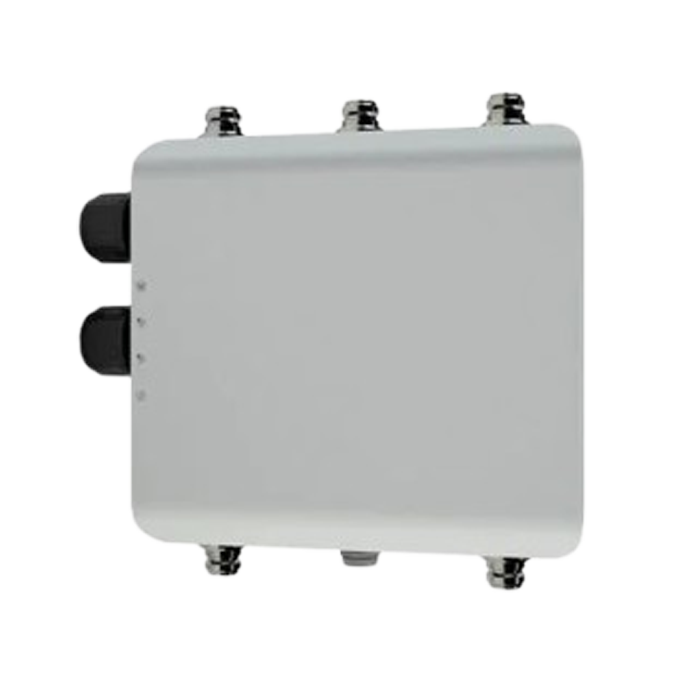

[AP-7662-680B30-WR] Extreme WiNG Outdoor Access Point, 2x2:2 Dual Radio, 802.11ac/abgn, Internal Antenna
![[AP-7662-680B30-WR] Extreme WiNG Outdoor Access Point, 2x2:2 Dual Radio, 802.11ac/abgn, Internal Antenna](/media/com_eshop/products/resized/AP-7662-680B30-WR-700x700.png "[AP-7662-680B30-WR] Extreme WiNG Outdoor Access Point, 2x2:2 Dual Radio, 802.11ac/abgn, Internal Antenna")
Quick Spec
Model AP-7662-680B30-WR
Wi-Fi standards supported 802.11a/b/g/n/ac Wave 2
Maximum data rate 1.3 Gbps
Radio frequencies supported 2.4 GHz, 5 GHz
Antenna gain 5 dBi (2.4 GHz), 8 dBi (5 GHz)
Radio chains and streams 2x2:2 (2.4 GHz), 2x2:2 (5 GHz)
Ethernet ports 1 x 1 Gbps Ethernet (RJ-45) port
Power options 802.3at PoE+ or external power supply
Maximum power consumption 18 watts
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%
฿0
฿0
Operating temperature range -40°C to 65°C (-40°F to 149°F)
Storage temperature range -40°C to 85°C (-40°F to 185°F)
Operating humidity 5% to 95% non-condensing
Storage humidity 5% to 95% non-condensing
Dimensions (H x W x D) 11.4" x 11.4" x 3.9" (290mm x 290mm x 99mm)
LED indicators Power, Ethernet, and Wi-Fi status
Security features WPA2-Enterprise, 802.1X authentication, RADIUS support
Management features ExtremeCloud IQ, SNMP, HTTP/HTTPS, CLI, SSH
QoS features 802.11e/WMM, 802.1p, DiffServ
Standards compliance RoHS, WEEE, CE, FCC Part 15 Class B, ICES-003 Class B
Ruggedization IP67 weatherproof rating, MIL-STD-810G, IK10
